SPB-240-24 Autonics Power Supply

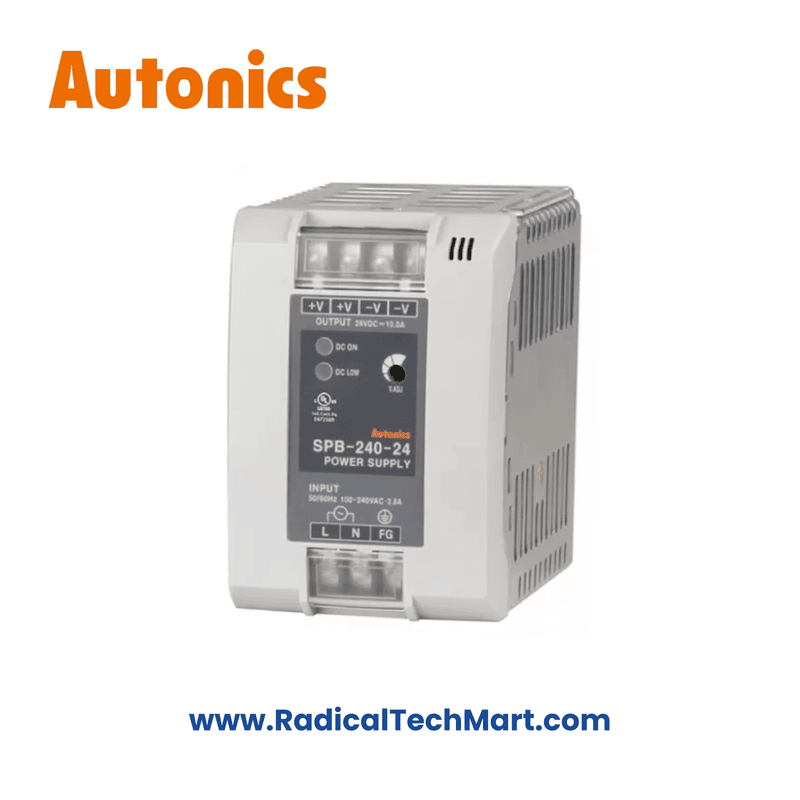

Autonics SPB-240-24 DIN-Rail SMPS Power Supply (24 V DC, 10 A, 240 W)
High-capacity DIN-rail-mounted SMPS delivering 24 V DC at 10 A (240 W).
Ideal for large control panels, PLC systems, HMIs, sensors, and automation loads requiring stable and reliable 24 V power.
Customize
Share :
The Autonics SPB-240-24 is a high-power DIN-rail switching power supply delivering 24 V DC at 10 A with a 240 W output rating. Designed for industrial automation and control panels, it offers high efficiency, built-in PFC, and comprehensive protection features, ensuring stable and long-term operation in demanding environments.
Key Features
24 V DC output, 10 A current (240 W)
Wide input voltage range: 100–240 VAC
Built-in Power Factor Correction (PFC ≥ 0.9)
DIN-rail mounting for compact panel layouts
High efficiency up to ~90%
Built-in over-current protection
Over-voltage protection
Short-circuit & over-temperature protection
Output ON (green LED) & low-voltage (red LED) indicators
Robust industrial-grade construction
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | SPB-240-24 |
| Series | SPB |
| Output Voltage | 24 V DC |
| Output Current | 10 A |
| Output Power | 240 W |
| Input Voltage | 100–240 VAC (85–264 VAC permissible) |
| Frequency | 50 / 60 Hz |
| Efficiency (Typical) | ~88–90% |
| Power Factor | ≥ 0.9 (PFC built-in) |
| Voltage Adjustment | ±5% |
| Ripple & Noise | ≤ 1% |
| Protection | Over-current, overvoltage, short circuit, overtemperature |
| Mounting | DIN rail |
| Operating Temperature | −10 to +50 °C |
| Protection Rating | IP20 |
Applications
Large PLC & HMI panels
Industrial automation systems
Sensors, transmitters & I/O modules
Control cabinets with multiple loads
OEM machinery power distribution
Factory automation & process panels
What’s in the Box?
SPB-240-24 DIN-Rail Power Supply
Terminal protection cover
Instruction manual
FAQ
Q1. Is SPB-240-24 suitable for large PLC panels?
Yes, it is ideal for high-load PLCs, HMIs, and multi-device control panels.
Q2. Does it include power factor correction?
Yes, built-in PFC (≥ 0.9) is provided.
Q3. Can the output voltage be adjusted?
Yes, ±5% output voltage adjustment is available.
Q4. What protections are included?
Over-current, over-voltage, short-circuit, and over-temperature protection.
Q5. Can multiple SMPS outputs be connected in parallel?
No, parallel or series output connection is not recommended.
